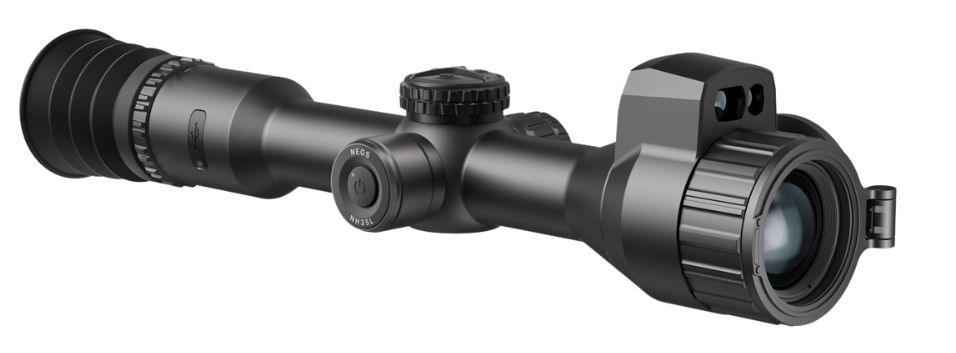

Thermal riflescope HIKMICRO NEOS NH35L

The HIKMICRO NEOS NH35L is a high-performance thermal riflescope combining a sensitive 384 × 288 VOx thermal sensor, a 35 mm objective lens, an integrated laser rangefinder and a ballistic calculator. Its traditional riflescope design with a standard 30 mm mounting tube allows the use of conventional scope mounts.

With thermal sensitivity below 18 mK, the sensor detects subtle temperature differences even in challenging weather conditions. The 35 mm F1.0 objective lens provides a thermal detection range of up to 1800 metres. The 3.2–25.6× magnification range is suitable for observation in both woodland and open terrain.

The integrated 905 nm laser rangefinder measures distances up to 1000 metres with ±1 m accuracy. The built-in ballistic calculator uses measured distances to calculate ballistic corrections. Five zeroing profiles are supported.

HIKMICRO's HSIS shutterless imaging system reduces interruptions caused by thermal calibration. Image Pro 3.0, Zoom Pro and Sync Pro technologies enhance image detail and smoothness. The 0.49-inch 1920 × 1080 AMOLED display provides a clear and detailed image.

The riflescope supports photo, video and audio recording, recoil-activated recording, picture-in-picture mode and Wi-Fi connectivity. It includes 64 GB of internal storage.

An internal rechargeable battery combined with a replaceable 18650 battery provides approximately 8 hours of operation. IP67 protection and rugged construction make the device suitable for demanding outdoor conditions.

Key Features

• 384 × 288 VOx thermal sensor
• NETD below 18 mK
• 35 mm F1.0 objective lens
• Thermal detection range up to 1800 m
• 3.2–25.6× magnification
• Integrated 1000 m laser rangefinder
• Ballistic calculator and 5 zeroing profiles
• HSIS shutterless imaging system
• Image Pro 3.0, Zoom Pro and Sync Pro
• 1920 × 1080 AMOLED display
• 64 GB internal storage
• Photo, video and audio recording
• Recoil-activated recording
• Standard 30 mm mounting tube
• IP67 protection rating

Technical Specifications

• Brand: HIKMICRO
• Model: NEOS NH35L
• Type: thermal riflescope with laser rangefinder
• Sensor: uncooled VOx, 384 × 288 pixels
• Pixel pitch: 12 μm
• Frame rate: 50 Hz
• Spectral range: 8–14 μm
• Thermal sensitivity (NETD): below 18 mK
• Objective lens: 35 mm, F1.0
• Focus: manual
• Minimum focusing distance: 3 m
• Detection range: up to 1800 m
• Field of view: 7.6° × 5.7°
• Field of view at 100 m: 13.1 × 10.0 m
• Magnification: 3.2–25.6×
• Display: 0.49″ AMOLED, 1920 × 1080 pixels
• Colour palettes: White Hot, Black Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
• Laser rangefinder: Class 1, 905 nm
• Ranging distance: 10–1000 m
• Ranging accuracy: ±1 m
• Ballistic calculator: yes
• Zeroing profiles: 5
• Click value: 1 cm at 100 m
• Image processing: HSIS, Image Pro 3.0, Zoom Pro, Sync Pro
• Picture-in-picture (PIP): yes
• Internal storage: 64 GB eMMC
• Photo, video and audio recording: yes
• Recoil-activated recording: yes
• Connectivity: Wi-Fi
• Battery: internal rechargeable Li-ion + replaceable 18650
• Operating time: approximately 8 h at +25 °C
• External power: USB-C, 5 V / 2 A, QC3.0
• Mounting tube: 30 mm
• Protection rating: IP67
• Recoil resistance: 1000 g / 0.4 ms
• Operating temperature: −30 to +55 °C
• Dimensions: 345.6 × 86.1 × 75.8 mm
• Weight: 570 g
