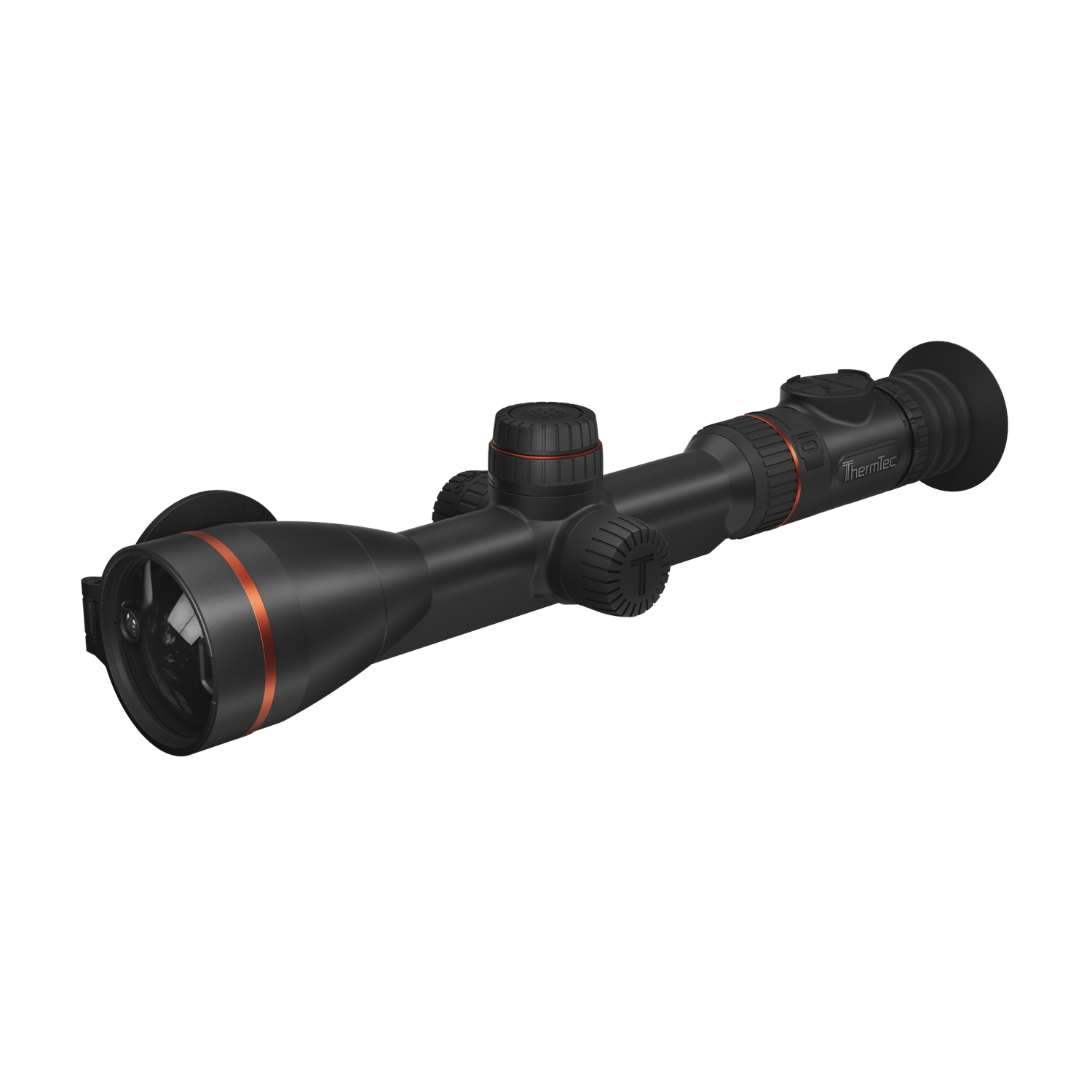

Optical Thermal Tube Scope ThermTec ORYX 650LR with ZEISS Rail

ThermTec ORYX 650LR (with Zeiss rail) is a high-performance optical thermal scope featuring a 640 × 512, 12 µm thermal sensor and a 50 mm F0.9 objective lens. With NETD ≤15 mK, a 50 Hz frame rate and a detection range of up to 2600 m, the scope delivers detailed thermal imaging in demanding observation conditions.

The scope offers 3.7× base magnification, 1–4× digital zoom, a 1.03-inch AMOLED display with 2560 × 2560 resolution and an integrated laser rangefinder with a range of up to 1200 m. It also supports a ballistic calculator, photo and video recording, PIP and multiple zeroing profiles.

Mounting Configuration

This is the Zeiss rail-mounted version of the ORYX 650LR.

The product is not the standard-mount ORYX 650LR. It is specifically supplied with a Zeiss rail mounting configuration. The optical and electronic specifications correspond to the ORYX 650LR platform; the difference is the specific mounting configuration.

Technical Specifications
