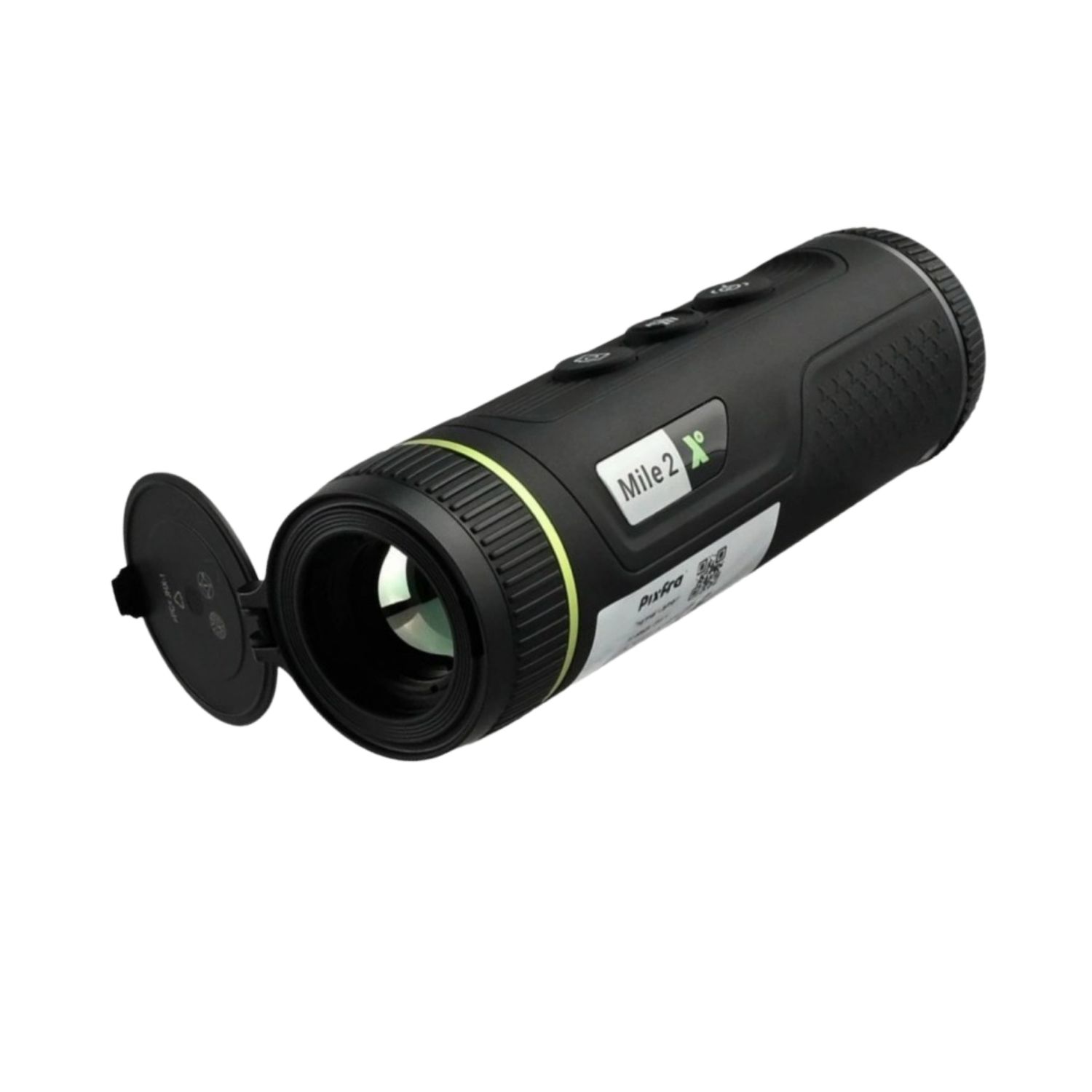

Thermal Monocular PIXFRA Mile 2 PFI-M419

Pixfra Mile 2 Series Thermal Monocular (PFI-M419)

The Pixfra Mile 2 series thermal monocular PFI-M419 combines compact pocket-sized design, solid thermal performance and practical smart features. Its lightweight and ergonomic housing ensures comfortable handling during extended use.

Clear and detailed image
An uncooled VOx thermal sensor (384×288 / 12 μm) with NETD ≤25 mK delivers clear images even with minimal temperature differences. The AMOLED display with wide color gamut provides sharp and vivid visuals.

Compact and easy to carry
Pocket-sized dimensions, soft pouch, neck strap and wrist strap allow convenient transport and long-term comfort.

Intuitive one-handed control
Innovative button layout enables effortless one-handed operation, even in complete darkness.

Long battery life & connectivity
The built-in 3200 mAh battery offers 8–10 hours of operation. Wi-Fi connectivity allows real-time viewing for up to four users.

Technical Specifications – Mile 2 PFI-M419

• Model: PFI-M419
• Detector: Uncooled VOx FPA
• Resolution: 384 × 288
• Pixel pitch: 12 μm
• Spectral range: 8–14 μm
• NETD: ≤25 mK @ F1.0
• Frame rate: 50 Hz
• Lens: 19 mm / F1.0
• Detection range: up to 1000 m
• Field of view: 14.4° × 10.8°
• FOV @100 m: 25.3 × 18.9 m
• Optical magnification: 2.05×
• Digital zoom: 1× / 2× / 4× / 8×
• Display: OLED, 0.32″
• Display resolution: 800 × 600
• Diopter: –3 D to +1 D
• Eye relief: 15 mm
• Color palettes: 6
• Calibration: Auto / Manual
• Hot spot tracking: Yes
• Memory: 16 GB internal
• Wi-Fi: Yes
• USB-C: Data & charging
• Battery: Rechargeable Li-ion, 3200 mAh
• Battery life: ≥8.5 h
• Operating temperature: –30 °C to +55 °C
• Storage temperature: –40 °C to +70 °C
• Protection rating: IP67
• Dimensions: 156.5 × 56.6 × 50.3 mm
• Net weight: <320 g
