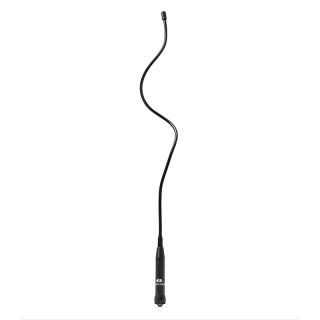

Komunica PWR-TA-40-SMAF Long VHF/UHF Antenna

The Komunica PWR-TA-40-SMAF is a flexible VHF/UHF antenna for handheld radios. Its 420 mm Extra Flex construction provides flexibility for convenient everyday portable radio use.

The antenna is designed for both reception (RX) and transmission (TX) on 144 MHz and 430 MHz. At 430 MHz, it provides a gain of 3 dBi.

The antenna has an impedance of 50 Ω and supports a maximum transmit power of 10 W. The SMA-F connector is designed for compatible handheld radios with an SMA-M antenna connection.

Technical Specifications

• Model: Komunica PWR-TA-40-SMAF
• Type: VHF/UHF handheld antenna
• Construction: Extra Flex
• RX/TX frequencies: 144 MHz / 430 MHz
• Gain: 3 dBi at 430 MHz
• Maximum power: 10 W
• Impedance: 50 Ω
• Length: 420 mm
• Connector: SMA-F
• Designed for compatible handheld radios

Package Contents

• 1 × Komunica PWR-TA-40-SMAF antenna
