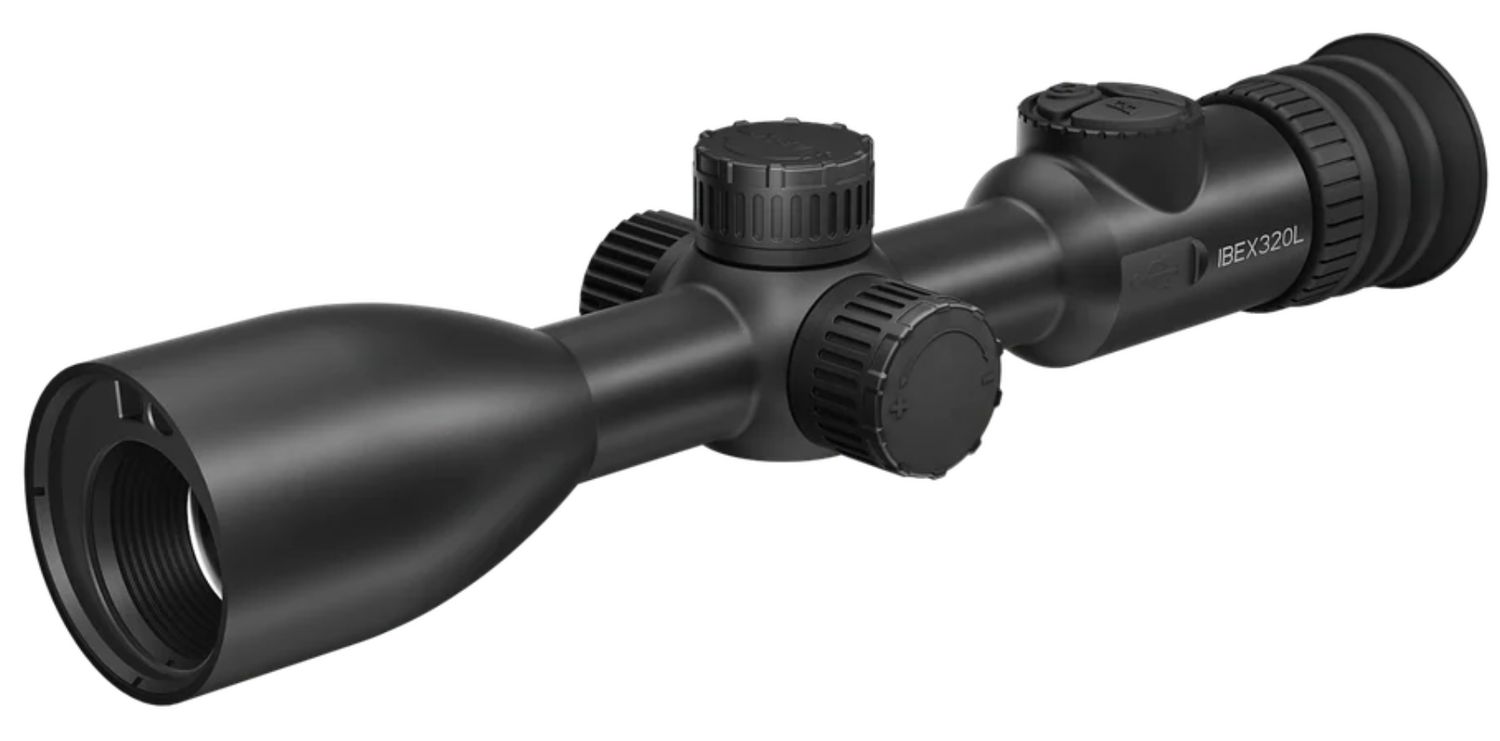

ThermTec IBEX 320L

ThermTec IBEX 320L is a compact, wide-field thermal riflescope with an integrated laser rangefinder and ballistic calculator. Its 384 × 288 thermal sensor, 20 mm F0.9 objective and 2.1× optical magnification provide a wide field of view for fast target acquisition.

The 384 × 288, 12 μm thermal sensor with NETD <18 mK delivers detailed thermal imaging, while the 50 Hz refresh rate provides smooth observation. Thermal Super Resolution enhances image detail and ThermTec AI Calibration helps maintain a clear and stable image.

The 20 mm F0.9 objective provides a 13.1° × 9.8° field of view, equivalent to 23.04 × 17.28 m at 100 m. Base magnification is 2.1× with continuous 1–4× digital zoom. Detection range is rated at up to 1000 m.

An integrated laser rangefinder measures distances up to 1000 m, while the ballistic calculator assists with accurate aiming. The IBEX 320L offers eight reticle designs, five reticle colours and six zeroing profiles.

The large 0.5" 1600 × 1200 AMOLED display provides a detailed viewing image. Additional functions include Picture-in-Picture, Recoil Activated Video (RAV), audio recording, Wi-Fi hotspot and 64 GB internal storage.

The scope uses standard 30 mm mounting rings and is rated to withstand recoil energy up to 6000 J. A replaceable 18650 battery provides up to six hours of operation, and two batteries are supplied with the device.

Technical Specifications

Manufacturer: ThermTec
Model: IBEX 320L
Type: Thermal riflescope with LRF
Sensor: 384 × 288 px
Pixel Pitch: 12 μm
NETD: <18 mK
Frame Rate: 50 Hz
Objective Lens: 20 mm F0.9
Optical Magnification: 2.1×
Digital Zoom: 1–4×
Field of View: 13.1° × 9.8°
FOV at 100 m: 23.04 × 17.28 m
Detection Range: Up to 1000 m
Laser Rangefinder: Up to 1000 m
Ballistic Calculator: Yes
Display: 0.5" AMOLED
Display Resolution: 1600 × 1200 px
Reticles: 8
Reticle Colours: 5
Zeroing Profiles: 6
Picture-in-Picture: Yes
RAV: Yes
TASS: Yes
Audio Recording: Yes
Internal Memory: 64 GB
Wi-Fi Hotspot: Yes
Mounting: Standard 30 mm rings
Recoil Resistance: Up to 6000 J
Battery: Replaceable 18650
Battery Life: Up to 6 hours per battery
Protection Rating: IP67
Operating Temperature: –20 to +50 °C
Dimensions: 344 × 86 × 70 mm
Weight: 720 ±5 g
