Thermal Monocular PIXFRA Mile 2 PFI-M625

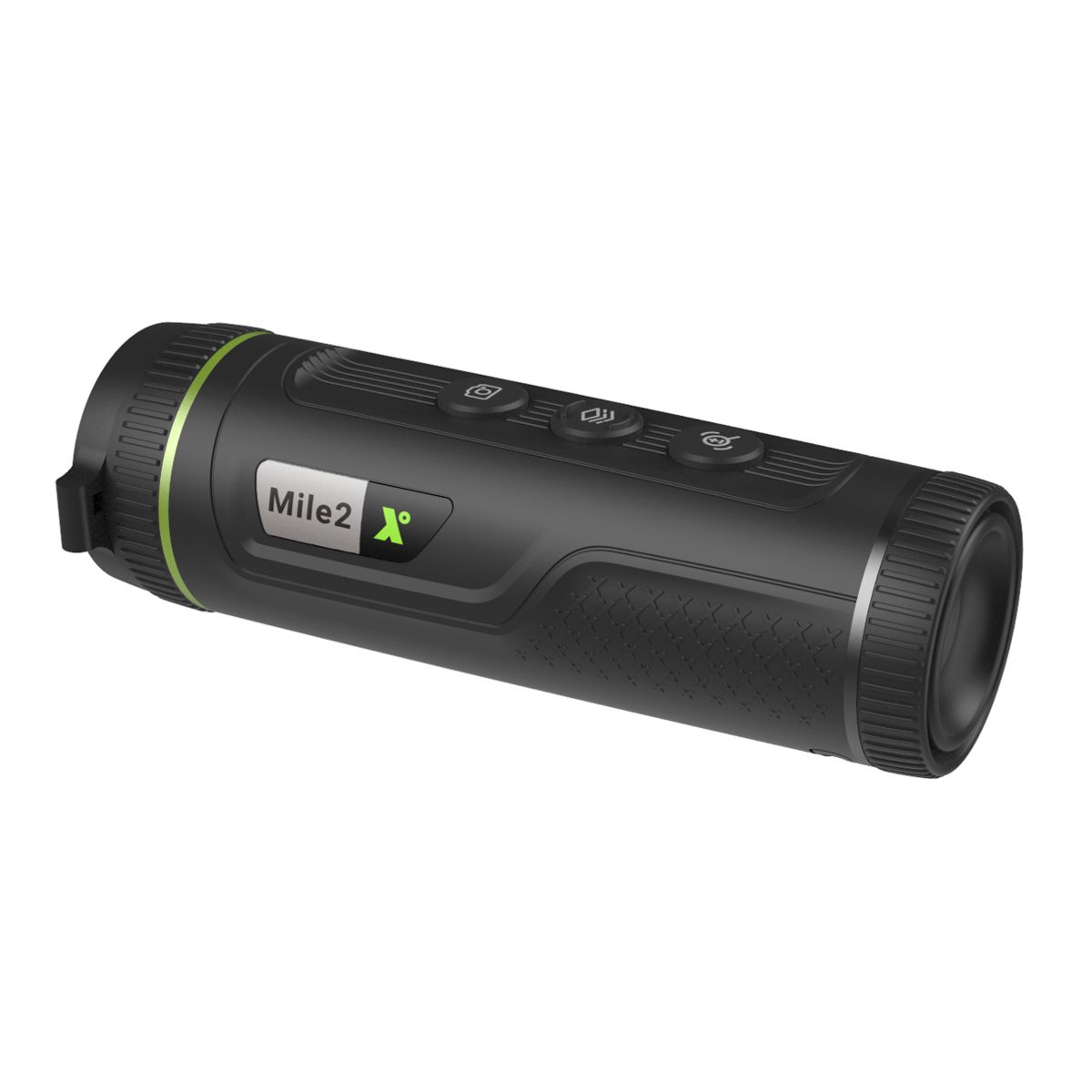

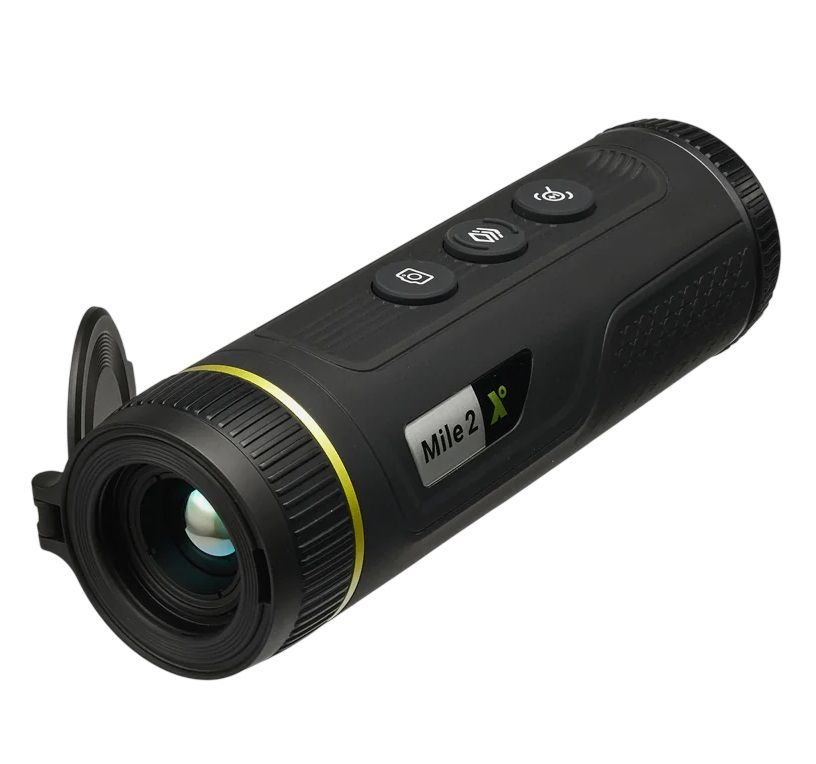

Mile 2 Series Thermal Monocular (PFI-M625)

The Mile 2 series thermal monocular is a compact and lightweight handheld device designed for comfortable long-term use. Its pocket-sized form factor combines portability, ergonomic handling and advanced thermal imaging performance.

Excellent image quality
Equipped with a NETD ≤25 mK uncooled VOx sensor and 640 × 512 resolution, the device delivers sharp and detailed images even in difficult weather conditions. The AMOLED display with wide color gamut ensures clear and high-contrast viewing.

Compact and ergonomic
Innovative button layout allows intuitive one-handed operation, even in complete darkness. Included accessories such as neck and wrist straps improve comfort during extended use.

Long battery life and connectivity
The built-in 3200 mAh battery provides 8–10 hours of operation. Wi-Fi connectivity enables real-time image sharing with up to four users simultaneously.

Reliable in harsh conditions
With IP67 protection, the Mile 2 is resistant to dust, water and extreme environments.

Technical Specifications – Mile 2 (PFI-M625)

• Model: PFI-M625
• Detector: Uncooled VOx FPA
• Resolution: 640 × 512
• Pixel pitch: 12 μm
• Spectral range: 8–14 μm
• NETD: ≤25 mK @ F1.0
• Frame rate: 50 Hz
• Lens: 25 mm / F1.0
• Detection range: up to 1300 m
• Field of view: 17.5° × 14.0°
• FOV @100 m: 30.7 × 24.6 m
• Optical magnification: 1.65×
• Digital zoom: 1× / 2× / 4× / 8×
• Display: OLED
• Display size: 0.32″
• Display resolution: 800 × 600
• Diopter: –3 D to +1 D
• Eye relief: 15 mm
• Color palettes: 6
• Memory: 16 GB internal
• Hot spot tracking: Yes
• Wi-Fi: Yes
• Interface: USB-C (data & charging)
• Battery: Rechargeable Li-ion, 3200 mAh
• Battery life: ≥8.5 h
• Operating temperature: –30 °C to +55 °C
• Storage temperature: –40 °C to +70 °C
• Protection rating: IP67
• Dimensions: 156.5 × 56.6 × 50.3 mm
• Net weight: <320 g
