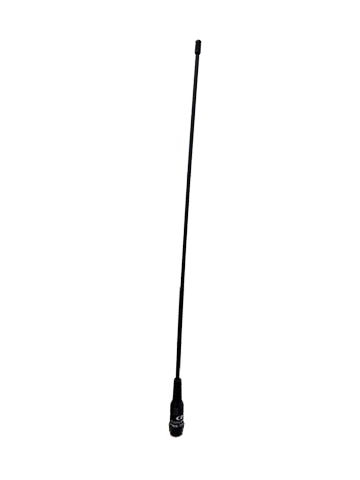

Komunica PWR-TA-71-S Long VHF/UHF Antenna 40 cm SMA

The Komunica PWR-TA-71-S is a 40 cm long VHF/UHF antenna for handheld radios, designed for use on the 144 MHz VHF and 430 MHz UHF bands.

In addition to VHF/UHF operation, the antenna provides RX reception on 120, 150, 300, 800 and 900 MHz bands, making it a versatile option for receiving a wider range of radio signals.

At 430 MHz, the antenna provides 2.15 dBi gain. Maximum power is 10 W with an impedance of 50 Ω. The antenna is equipped with an SMA connector.

Technical Specifications

• Model: Komunica PWR-TA-71-S
• Type: long VHF/UHF handheld radio antenna
• VHF/UHF: 144 / 430 MHz
• RX reception: 120 / 150 / 300 / 800 / 900 MHz
• Gain: 2.15 dBi at 430 MHz
• Maximum power: 10 W
• Impedance: 50 Ω
• Length: 400 mm
• Connector: SMA
