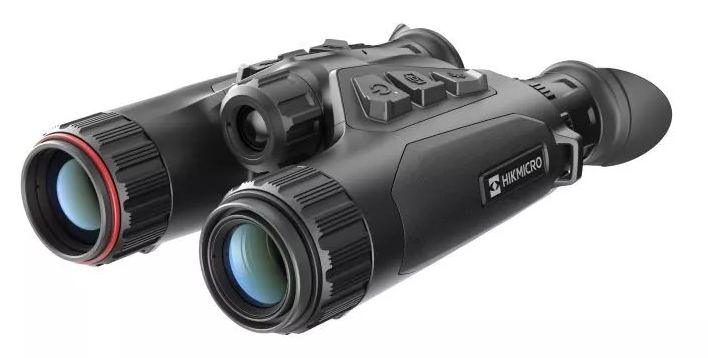

HIKMICRO HABROK 4K 2.0 HE25L

The HIKMICRO HABROK 4K 2.0 HE25L is a versatile multispectral binocular system combining thermal imaging, 4K digital day and night vision, and an integrated laser rangefinder. It allows users to detect animals by their heat signatures, observe them in detail and measure their distance using a single device. It is ideal for woodland and field hunting, wildlife observation and animal detection.

The thermal channel features a 256 × 192 VOx sensor with NETD <18 mK sensitivity, helping distinguish subtle temperature differences even in challenging weather conditions. Its 25 mm F1.0 thermal lens offers a detection range of up to 1200 m and 4.3×–17.2× magnification.

HIKMICRO's shutterless HSIS technology delivers smooth thermal imaging without conventional calibration interruptions. Zoom Pro enhances detail during digital magnification, while electronic image stabilization reduces image shake.

The 4K digital CMOS sensor and 60 mm F2.2 lens provide detailed color images during daylight. Digital magnification ranges from 5.5× to 22×.

For night observation, the binoculars include interchangeable 940 nm and 850 nm infrared illuminators. The 940 nm illuminator offers more discreet observation, while the 850 nm option provides stronger infrared illumination when required. Smart IR automatically adjusts illumination to viewing conditions, with a digital night vision range of up to 400 m.

The integrated laser rangefinder measures distances up to 1000 m with ±1 m accuracy. Convenient rear focus wheels allow quick adjustment of both imaging channels.

A 0.49-inch Full HD OLED display provides a clear image, while multiple thermal palettes and digital viewing modes allow users to customize the image.

Additional features include 64 GB internal storage, photo and video recording with audio, GPS, digital compass, Wi-Fi, Picture-in-Picture and hot-spot tracking.

The replaceable rechargeable battery provides at least 6.5 hours of operation. With IP67 protection and an operating temperature range of −30 to +55 °C, the binoculars are built for demanding outdoor conditions.

Key Features

• Thermal, digital day and night vision in one device
• 256 × 192 VOx thermal sensor, NETD <18 mK
• Thermal detection range up to 1200 m
• 4K digital CMOS sensor
• Thermal magnification: 4.3×–17.2×
• Digital magnification: 5.5×–22×
• Interchangeable 940 nm and 850 nm IR illuminators
• Digital night vision range up to 400 m
• 1000 m laser rangefinder
• HSIS shutterless technology and Zoom Pro
• Electronic image stabilization
• Rear focus wheel controls
• Full HD OLED display
• 64 GB internal storage
• GPS, digital compass and Wi-Fi
• IP67 protection

Technical Specifications

Thermal Channel

• Sensor: uncooled VOx
• Resolution: 256 × 192 px
• Pixel pitch: 12 μm
• NETD: <18 mK
• Frame rate: 50 Hz
• Spectral range: 8–14 μm
• Lens: 25 mm F1.0
• Magnification: 4.3×–17.2×
• Field of view: 7.0° × 5.3°
• Field of view at 100 m: 12.2 × 9.3 m
• Detection range: up to 1200 m
• Minimum focusing distance: 3 m

Digital Channel

• Sensor: 1/1.8″ Progressive Scan CMOS
• Resolution: 3840 × 2160 px (4K)
• Lens: 60 mm F2.2
• Magnification: 5.5×–22×
• Field of view: 7.3° × 4.1°
• Field of view at 100 m: 12.8 × 7.2 m
• Minimum operating distance: 8 m
• IR illuminators: interchangeable 850 nm and 940 nm
• Night vision range: up to 400 m
• Smart IR: yes

Laser Rangefinder

• Type: Class 1 laser
• Wavelength: 905 nm
• Measuring range: 10–1000 m
• Accuracy: ±1 m

Display and Features

• Display: 0.49″ OLED
• Resolution: 1920 × 1080 px
• Thermal palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
• Digital modes: Day, Night, Auto, Green, Yellow
• HSIS, Zoom Pro and image stabilization: yes
• Picture-in-Picture and hot-spot tracking: yes
• Photo, video and audio recording: yes
• Internal storage: 64 GB eMMC
• GPS and digital compass: yes
• Wi-Fi hotspot: yes
