Thermal Monocular Infiray MATE MAL38

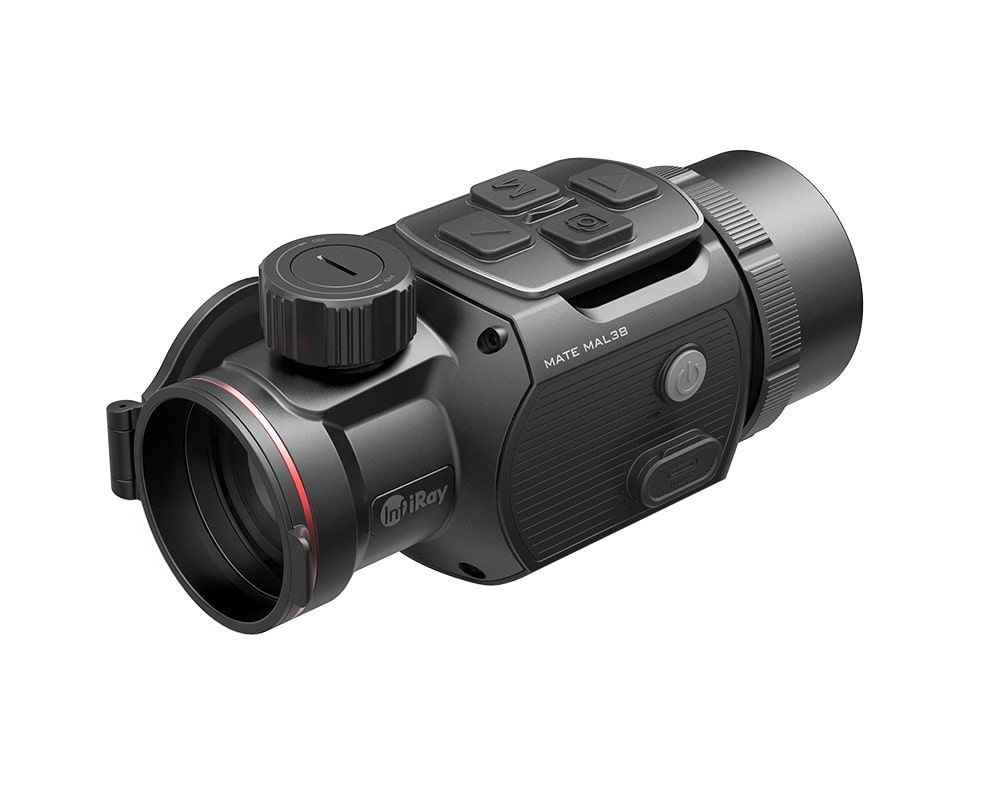

InfiRay Mate MAL38 Thermal Clip-On

The InfiRay Mate MAL38 is part of the MATE series, equipped with a new high-performance thermal detector with NETD ≤30 mK. It delivers sharp, high-resolution images even when paired with high-magnification optics, without blurring or distortion. With dedicated image processing modes (Forest, Plains, City), the MAL38 adapts to ambient conditions, ensuring clear vision even through fog, tall grass, or light obstacles.

Key features:

• Wireless remote control, mountable on the weapon
• Impact-resistant magnesium alloy housing, 1MOA standard
• Ultra-clear mode for fog and rain
• Photo & video recording with 32GB internal memory and Wi-Fi
• IP67 protection – dust- and waterproof
• Optional ILR-1200-2 laser rangefinder (up to 1200 m)

Technical data:

• Model: MAL38
• Sensor resolution: 384×288 (VOx uncooled)
• Pixel size: 12 μm
• NETD: ≤30 mK
• Frame rate: 50 Hz
• Lens: 38 mm
• Recommended scope magnification: G1/G2: 1–5×, G3/G4: 6–8×
• Field of view: 7.0° × 5.3° / 12.3° × 9.2°
• Zoom: Clip-on ×1 / Monocular ×1/×2/×4
• Detection distance: up to 1948 m
• Display: OLED, 1024×768
• Battery life: 4.5 h, up to 7.5 h with external battery
• Protection rating: IP67
• Color palettes: White hot, Black hot, Red hot, Color
• Dimensions: 138 × 62 × 71 mm
• Weight: ≤520 g
• Interface: USB-C
• Accuracy: 1 MOA
• Thread: M52 × 0.75
