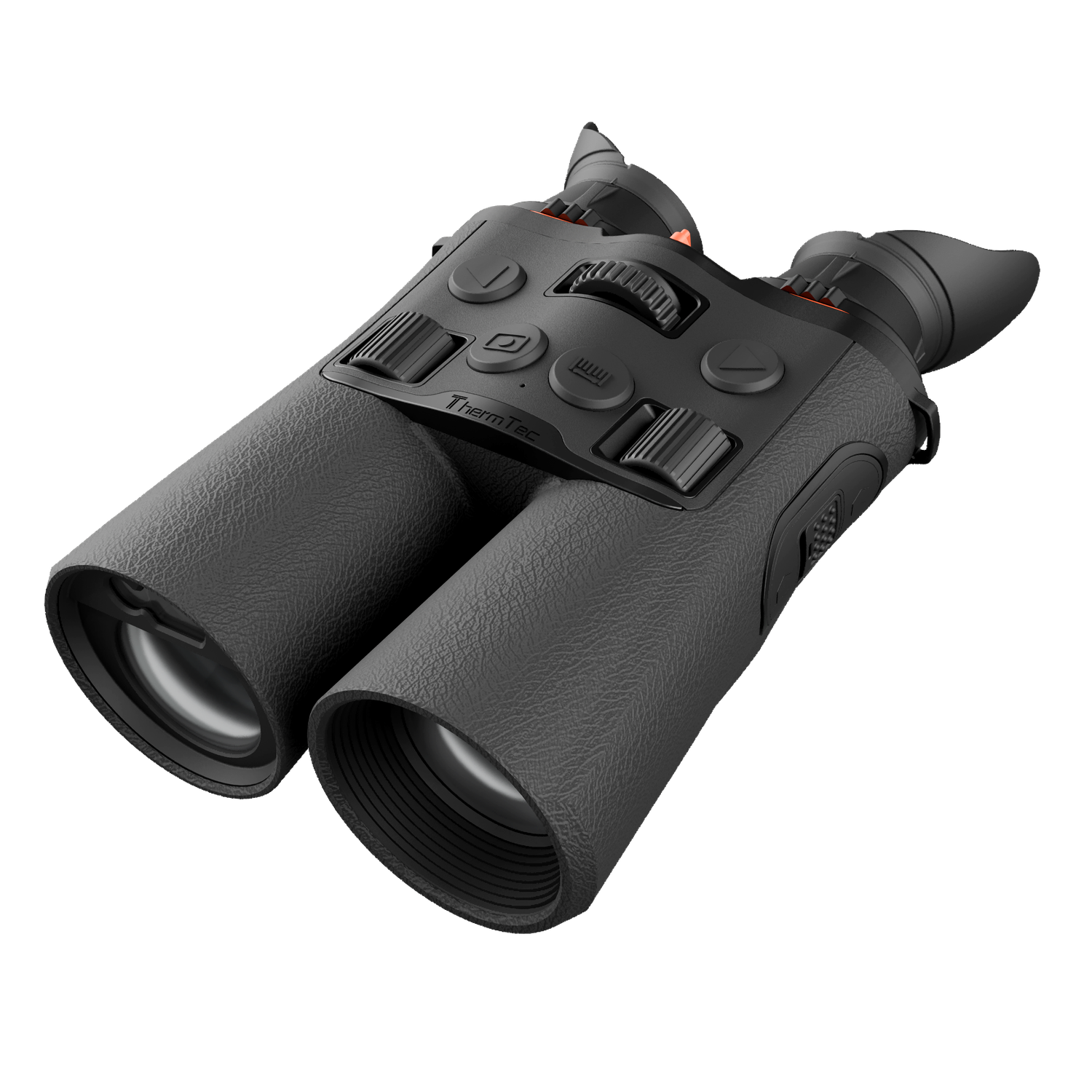

ThermTec Ventus 635L multi-spectrum binocular with thermal imaging and LRF

Binocular ThermTec Ventus 635L

Product Details

ThermTec Ventus 635L is a multi-spectrum binocular combining a high-sensitivity thermal imaging module with a 12 MP digital CMOS day/night vision channel. The 640 × 512, 12 µm thermal sensor has NETD below 15 mK, while the 35 mm F0.9 thermal lens provides a detection range of up to 1800 m.

The digital channel uses a 3536 × 3536 CMOS sensor and a 50 mm F1.4 lens. Switchable 850 nm and 940 nm IR illumination allows operation in complete darkness, with viewing ranges of up to 400 m and 350 m respectively.

The Ventus 635L features an integrated laser rangefinder with a range of up to 1000 m, electronic image stabilisation, PIP, Heat Track, digital compass, azimuth, 64 GB internal storage and photo/video recording. The 0.5-inch AMOLED display with 1600 × 1200 resolution provides a clear and detailed image.

Technical Specifications

Manufacturer: ThermTec

Series: Ventus

Model: Ventus 635L

Type: Multi-Spectrum Binocular

Thermal sensor resolution: 640 × 512 pixels

Thermal pixel pitch: 12 µm

Thermal NETD: <15 mK @ 300 K

Thermal spectral range: 8–14 µm

Thermal objective lens: 35 mm / F0.9

Thermal field of view (H × V): 12.5° × 10°

Thermal field of view at 100 m: 21.9 × 17.6 m

Thermal frame rate: 50 Hz

Thermal magnification: 2.6–10.4× (4× digital zoom)

Thermal detection range: Up to 1800 m

Digital sensor: 3536 × 3536 pixels, 2 µm CMOS

Digital objective lens: 50 mm / F1.4

Digital field of view: 8.1° × 8.1°

Digital field of view at 100 m: 14.14 × 14.14 m

Digital magnification: 4–16× (4× digital zoom)

IR illumination: 850 nm / 940 nm, switchable

Night viewing range at 850 nm: Up to 400 m

Night viewing range at 940 nm: Up to 350 m

Display: AMOLED

Display resolution: 1600 × 1200 pixels

Display size: 0.5″

Colour palettes: 6

Electronic image stabilisation (EIS): Yes

Eye relief: 20 mm

Exit pupil: 8 mm

Diopter adjustment: ±5D

Interpupillary adjustment: 60–72 mm

Image modes: Forest / Rainy

TSR algorithm: Yes

Integrated LRF: Up to 1000 m

LRF safety class: Class 1

LRF wavelength: 905 nm

LRF accuracy: ±1 m

Photo/video playback: Yes

Audio recording: Yes

Azimuth: Yes

Digital magnetic compass: Yes

Hotspot: Yes

Languages: Multiple languages

Internal storage: 64 GB EMMC

PIP: Yes

Heat Track: Yes

Local album: Yes

OSD recording: Yes

Burn prevention: Yes

Battery: 2 × replaceable 18650 Li-ion

Operating time: Up to 6 hours

USB interface: Type-C

Operating temperature: –20 °C to +50 °C

Protection rating: IP67

Weight: 825 g

Dimensions (L × W × H): 164 × 127.6 × 73 mm

Tripod mount: 1/4-20 UNC
