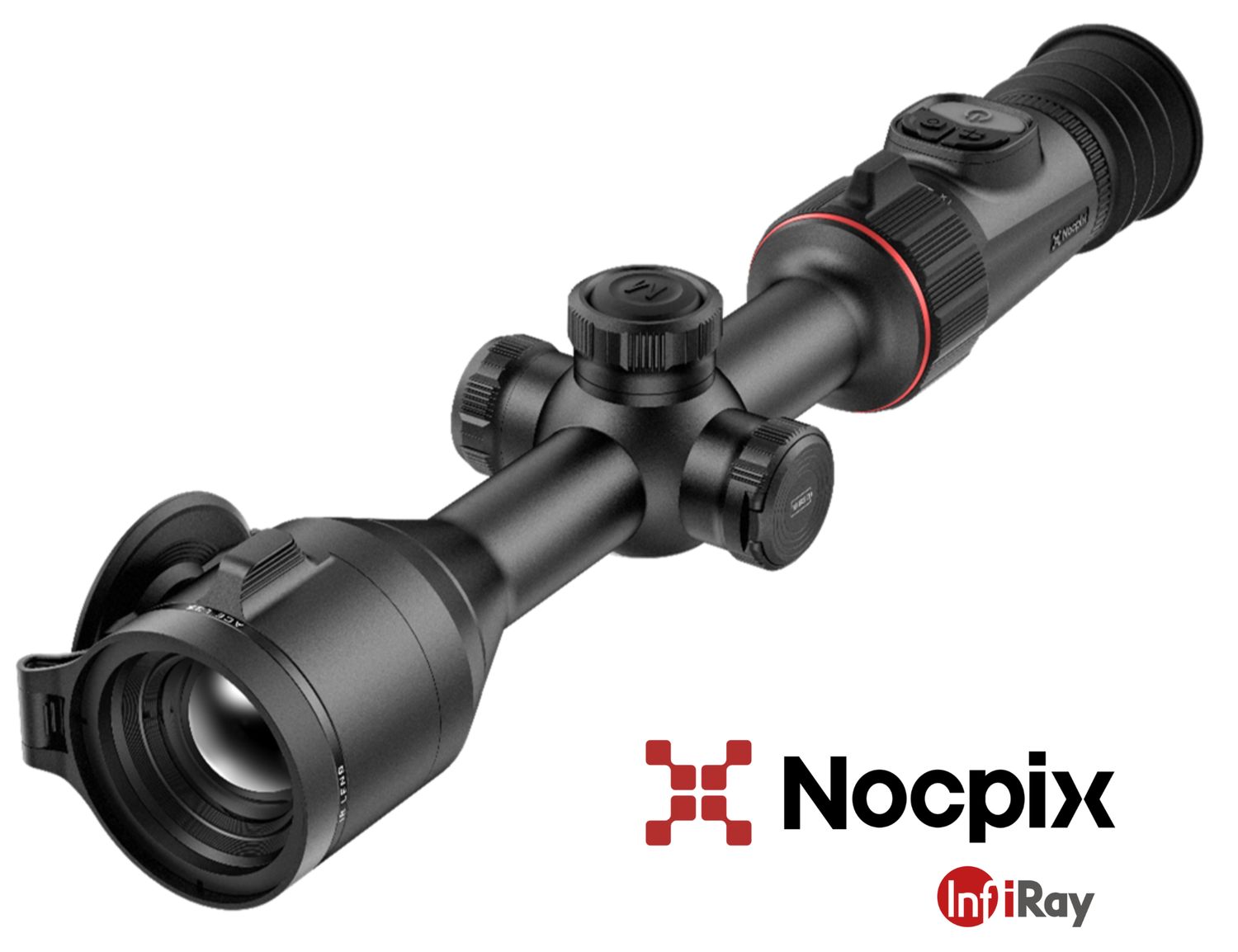

​InfiRay Nocpix ACE L35

InfiRay Nocpix ACE Series Thermal Riflescope

The InfiRay Nocpix ACE series represents the premium level of thermal riflescopes, combining cutting-edge technology with uncompromising performance. With an ultra-sensitive thermal detector (≤18 mK NETD) and a fast 60 Hz refresh rate, the ACE delivers crystal-clear and detailed imaging even in harsh environments.

The 1.03" AMOLED display with 2560×2560 resolution ensures outstanding clarity and sharpness. The scope features photo and video recording (with audio), 64 GB internal memory, Wi-Fi connectivity, and a mobile app for seamless operation.

Thanks to the 30 mm ring mount, the scope fits a wide range of rifles and withstands recoil forces up to 6000 J. The built-in 4000 mAh battery, combined with a replaceable 18650 battery, provides up to 7 hours of continuous use.

Technical data:

• Detection range: up to 1800 m
• Sensor resolution: 384×288
• Pixel pitch: 12 µm
• NETD: ≤18 mK
• Frame rate: 60 Hz
• Objective lens: 35 mm F0.9
• Magnification: 4–16× (optical 1–3×)
• Field of view: 7.5° × 5.7° (13×10 m @100 m)
• Eye relief: 50 mm
• Exit pupil: 8 mm
• Diopter: -5 ~ +5
• Display: 1.03" AMOLED, 2560×2560
• Color palettes: 7 options
• Recording: photo & video (with sound)
• Internal memory: 64 GB
• Connectivity: USB-C, Wi-Fi, mobile app
• Mount: 30 mm rings
• Max recoil resistance: 6000 J
• Battery: built-in 4000 mAh + replaceable 18650
• Battery life: up to 7 h
• Operating temperature: -20°C … +50°C
• Protection: IP67
• Dimensions: 350 × 90 × 62 mm
• Weight: 1050 g
